    A unique service for the thermal optimisation of furnaces, the In-Furnace Glass Survey produces real-time and recorded images for analysis, supplementing traditional refractory inspections.

    The survey helps to improve glass application productivity with optimised pull rates, and increases thermal and combustion efficiency, lowering fuel costs. It protects the refractory from damage, extending campaign life, and optimises the flame pattern to reduce energy consumption. It also helps ensure energy compliance.

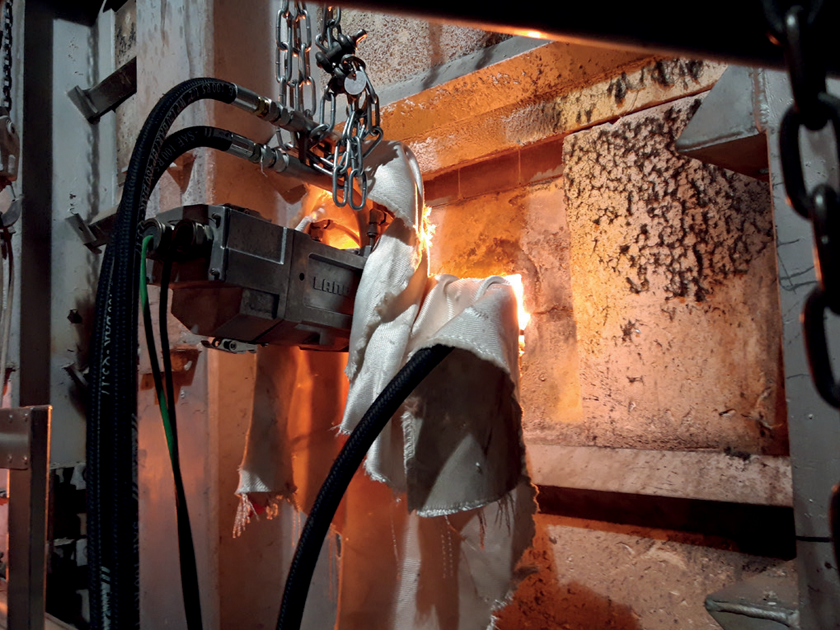

    Combining near-infrared borescope thermal imaging with portable multi-gas analysis, the In-Furnace Glass Survey is carried out by an experienced engineer at a specified number of furnace locations.

    Tailored to specific application requirements, the In-Furnace Glass Survey is suitable for refractory processes in the glass industry, including the manufacture of float, borosilicate, and container glass, as well as melt furnaces and fibre glass production.

    Optimised for measuring high temperatures between 1000 to 1800°C (1832 to 3272°F), the NIR-B Glass creates detailed and live high-resolution images from within the furnace. Dedicated image processing software ensures accurate data analysis. The Lancom 4 portable multi-gas analyser measures up to eight flue gases for the optimisation of combustion and emissions processes.

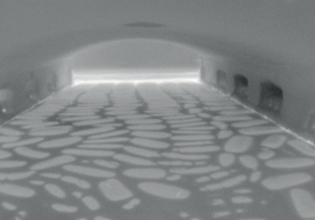

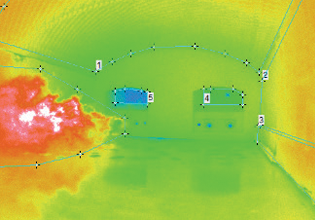

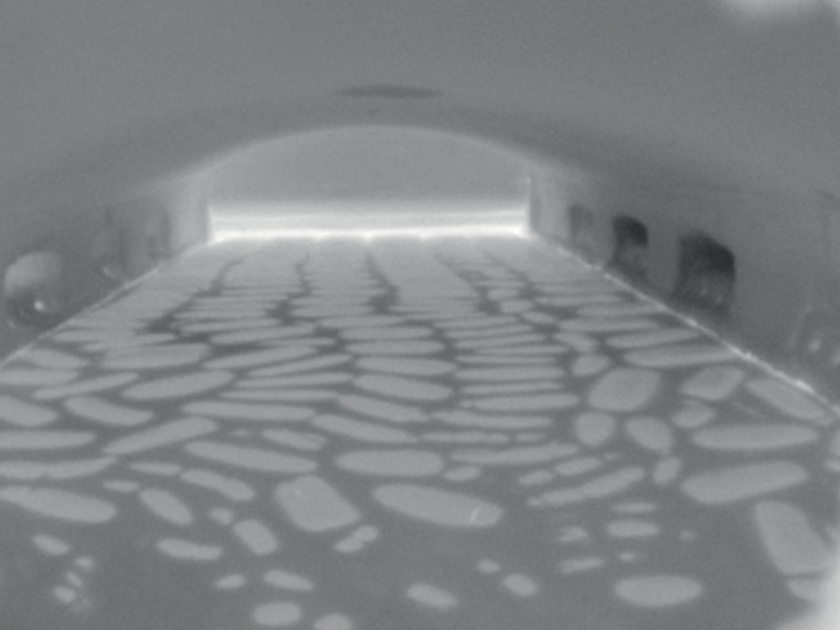

    Using a negative image, the In-Furnace Thermal Glass Survey reveals where there is too much or insufficient cooling. Excessive cooling increases emissions and leads to refractory wear, as the batch piles drag along the lining. A software-based isotherm function identifies refractory areas below 1388oC (2530oF), where sodium hydroxide can condense, corroding silica refractory.

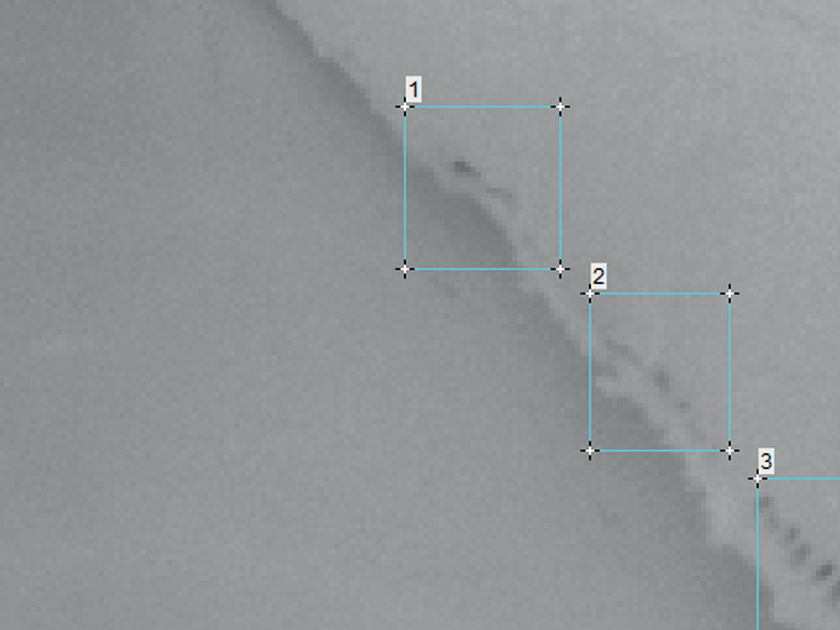

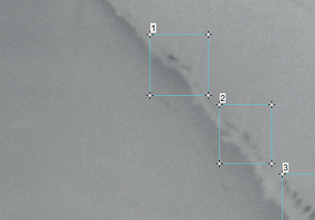

    Small rat holes and other damage can be identified and located before they become apparent on the exterior, making them easier and less costly to repair than larger holes. A further survey will be able to confirm the success of the repair, reducing the need for any re-work.

    The In-Furnace Thermal Glass Survey is AMETEK Land’s unique thermal optimisation solution for glass refractory applications – Request a callback.

  • 調査パッケージ +

       Warm Up Silver
    (Standard +)
    On-site Survey Duration (max days)  2 2 3 4
    Locations (min)  2 2 4 4
     Air + Oxy Fuel  ✔ ✔  ✔   ✔
     Air + Oxy Fuel + Combustion      ✔
     NIR-B Glass
     Lancom 4
     Findings & recommendations report with static images
     Archive and videos including .erf files focused on:
        Air/Oxy Fuel
          - Illustration of the basic thermal distribution of the
          - Furnace isotherms and temperature profiles
        Air Fuel only
          - Basic combustion analysis
          - Simple NOx analysis
          - NOx and flame coloration analysis
          - Furnace operation and output to control system
          - Fuel balance, flame shape, flame distribution analysis
        Oxy Fuel only
          - Burner block inspection (where possible)

          - Fuel balance, flame shape, flame distribution analysis
          - Flame impact on batch patterns and surrounding
            refractories analysis
          - Furnace operation and output to control system
          - Exhaust port measurements
